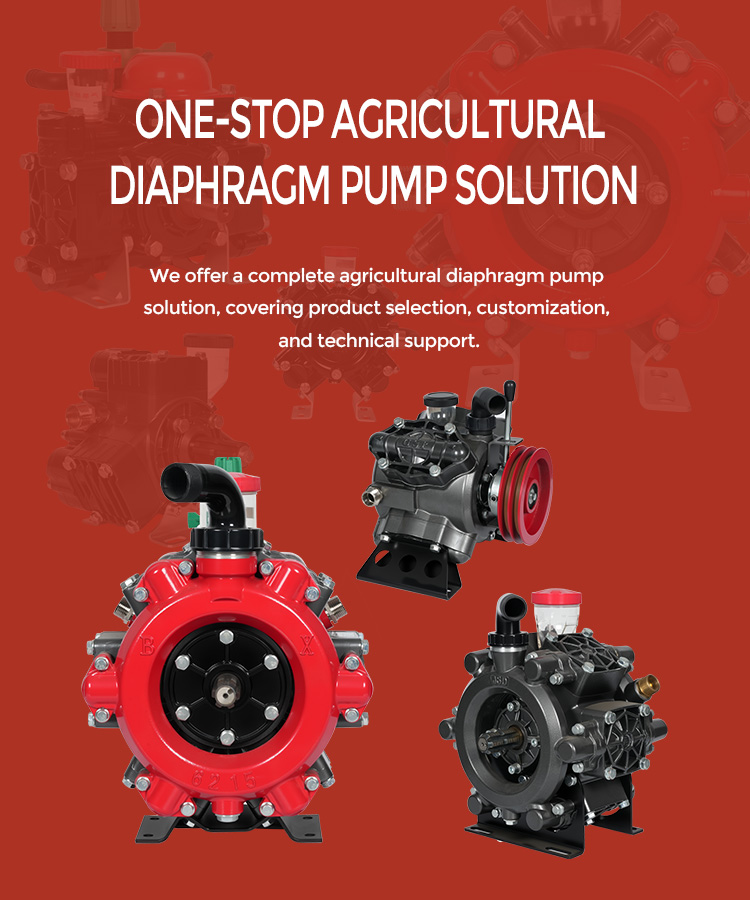

One-Stop Agricultural Diaphragm Pump Solution

We offer a complete agricultural diaphragm pump solution, covering product selection, customization, and technical support.

Our pumps are designed to meet the real working conditions of irrigation and agricultural fluid transfer.

What We Provide
Wide Range of Pump Models-Different flow rates, pressure options, and pump sizes are available to suit various agricultural applications, from irrigation to spraying.

Application-Matched Solutions-We help you select the right diaphragm pump based on liquid type, working pressure, and system requirements, not just a standard model.

Customization & OEM Support-OEM and customization are available, including diaphragm materials, pump body options, and connection sizes.

Technical Support & Stable Supply-Professional technical support before and after sales, with stable production and long-term spare parts supply.

Inspection & Reliable Delivery-Every product is inspected before shipment to ensure consistent quality and dependable supply.

Get a Customized Solution & Quote
  • MB230/2.5 Agricultural Diaphragm Pump
    SPEED (rmp) FLOW (L/min) PRESSURE (Mpa) POWER DIMENSION (mm) WEIGHT (kg)
    MOTOR (HP) ENGINE (HP)
    600 30 2.5 3 4 260×210×265 7.5
    Learn more
  • MB345/2.5 Agricultural Diaphragm Pump
    SPEED (rmp) FLOW (L/min) PRESSURE (Mpa) POWER DIMENSION (mm) WEIGHT (kg)
    MOTOR (HP) ENGINE (HP)
    600 45 2.5 3 4 270×260×230 12
    Learn more
  • MB460/2.5 Agricultural Diaphragm Pump
    SPEED (rmp) FLOW (L/min) PRESSURE (Mpa) POWER DIMENSION (mm) WEIGHT (kg)
    MOTOR (HP) ENGINE (HP)
    600 60 2.5 7 9 3000×270×310 12
    Learn more
  • MB4100/2.5 Agricultural Diaphragm Pump
    SPEED (rmp) FLOW (L/min) PRESSURE (Mpa) POWER DIMENSION (mm) WEIGHT (kg)
    MOTOR (HP) ENGINE (HP)
    600 95 2.5 7 9 300×310×300 15
    Learn more
  • MB360/4.0 Agricultural Diaphragm Pump
    SPEED (rmp) FLOW (L/min) PRESSURE (Mpa) POWER DIMENSION (mm) WEIGHT (kg)
    MOTOR (HP) ENGINE (HP)
    600 60 4.0 7 9 298×325×290 16
    Learn more
  • MB4180/2.5 Agricultural Diaphragm Pump
    SPEED (rmp) FLOW (L/min) PRESSURE (Mpa) POWER DIMENSION (mm) WEIGHT (kg)
    MOTOR (HP) ENGINE (HP)
    600 160-180 2.5 11 14 400×340×440 23.5
    Learn more
  • MB4100/3.0 Agricultural Diaphragm Pump
    SPEED (rmp) FLOW (L/min) PRESSURE (Mpa) POWER DIMENSION (mm) WEIGHT (kg)
    MOTOR (HP) ENGINE (HP)
    600 100 3.0 7 9 300×310×300 18
    Learn more
  • MB4135/3.0 Agricultural Diaphragm Pump
    SPEED (rmp) FLOW (L/min) PRESSURE (Mpa) POWER DIMENSION (mm) WEIGHT (kg)
    MOTOR (HP) ENGINE (HP)
    600 135-110 3.0 10 13 325×272×348.5 20
    Learn more
  • MB4200/3.0 Agricultural Diaphragm Pump
    SPEED (rmp) FLOW (L/min) PRESSURE (Mpa) POWER DIMENSION (mm) WEIGHT (kg)
    MOTOR (HP) ENGINE (HP)
    600 200-185 3.0 11 14 336×325×370 23.5
    Learn more
  • MB6380/2.5 Agricultural Diaphragm Pump
    SPEED (rmp) FLOW (L/min) PRESSURE (Mpa) POWER DIMENSION (mm) WEIGHT (kg)
    MOTOR (HP) ENGINE (HP)
    600 380 2.5 15 18 400×320×520 42
    Learn more
  • MB6130/2.5 Agricultural Diaphragm Pump
    SPEED (rmp) FLOW (L/min) PRESSURE (Mpa) POWER DIMENSION (mm) WEIGHT (kg)
    MOTOR (HP) ENGINE (HP)
    600 130 2.5 10 13 315×288×400 22
    Learn more
  • MB6175/3.0 Agricultural Diaphragm Pump
    SPEED (rmp) FLOW (L/min) PRESSURE (Mpa) POWER DIMENSION (mm) WEIGHT (kg)
    MOTOR (HP) ENGINE (HP)
    600 175-160 3.0 11 14 335×325×418.5 27
    Learn more
Who We Are Where Durability Meets Precision in Every Drop

Jinhua Shuangding Machinery Co., Ltd. is a China-based innovator in agricultural spray technology. With 14 years of specialized experience, we engineer durable PTO diaphragm pumps and precision spraying systems that withstand 10,000+ hours of field operation.

CONTACT US
  • Jinhua Shuangding Machinery Co., Ltd. Technology Leadership

    Continuous innovation in PTO pump systems and nozzle technology

  • Jinhua Shuangding Machinery Co., Ltd. QUALITY ASSURANCE

    Modern production lines with complete testing equipment and ISO-certified QC system

  • Jinhua Shuangding Machinery Co., Ltd. Global Reach

    Products distributed across China and exported to 30+ countries including European, African, and Southeast Asian markets

  • 0

    Professional Testing Equipment

  • 0

    R&D Team Employees

  • 0

    Utility Model Patents

Jinhua Shuangding Machinery Co., Ltd.
  • 0

    Modern Production Lines

  • 0+

    Annual Output of Diaphragm Pumps

  • 0+

    Annual Output Of Spray Accessories

  • 01.
    Customization

    We have a strong R&D team, and we can develop and produce products according to the drawings or samples the customers offer.

  • 02.
    Technology

    Integrates intelligent pressure regulation chips to adapt to load changes in real time.

  • 03.
    Quality Assurance

    Builds a product full-life-cycle database, using after-sales fault data to optimize production processes.
