Fan atomizing nozzle

• Describe

  This product is constructed of high-strength plastic, nylon, and stainless steel for durability. The nozzles are the result of extensive research and in-house testing, ensuring stable flow and angle. The flow rate variation between nozzles of the same model is less than 2%. In clean water testing, nozzle wear was less than 2% for 240 hours at 3 kg pressure. Because nozzle flow is sensitive to pressure, please measure the flow rate and adjust the pressure before use.

• Specification

  Nozzle	Model	Pressure (Mpa)	Flow (L/min)	Spray angle (°)
  Yellow	FT10 - 02	0.2	0.653	110
  		0.3	0.8	110
  		0.4	0.924	110
  		0.5	1.04	110

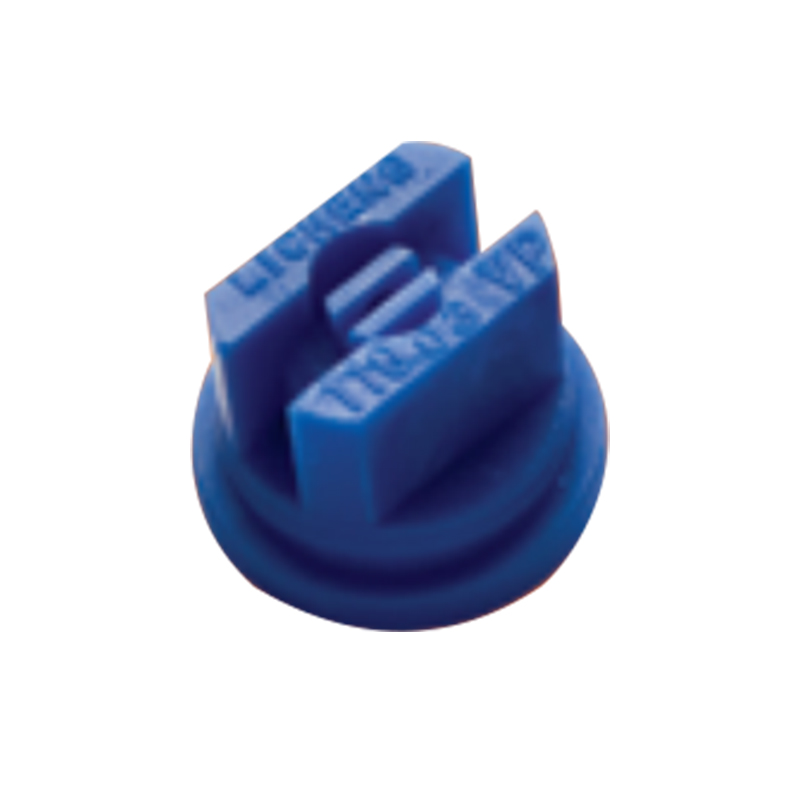

  Blue	FT10 - 03	0.2	0.98	110
  		0.3	1.2	110
  		0.4	1.386	110
  		0.5	1.56	110

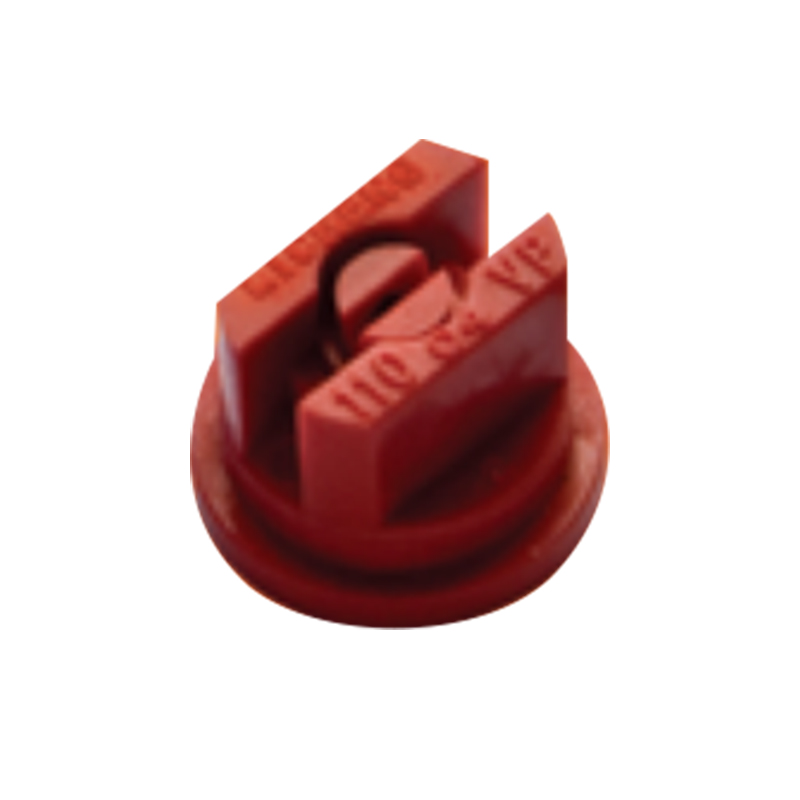

  Red	FT10 - 04	0.2	1.306	110
  		0.3	1.6	110
  		0.4	1.848	110
  		0.5	2.08	110

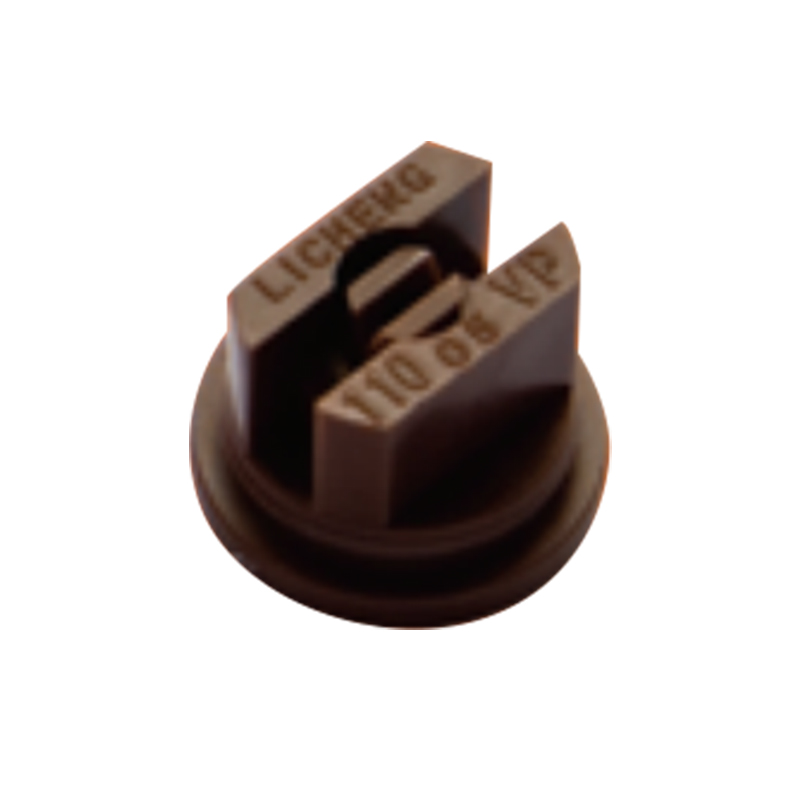

  Brown	FT10 - 05	0.2	1.633	110
  		0.3	2	110
  		0.4	2.309	110
  		0.5	2.6	110
